EV3 Grabber by 0nly4Girlz

FOLLOWERS

582

LIKES

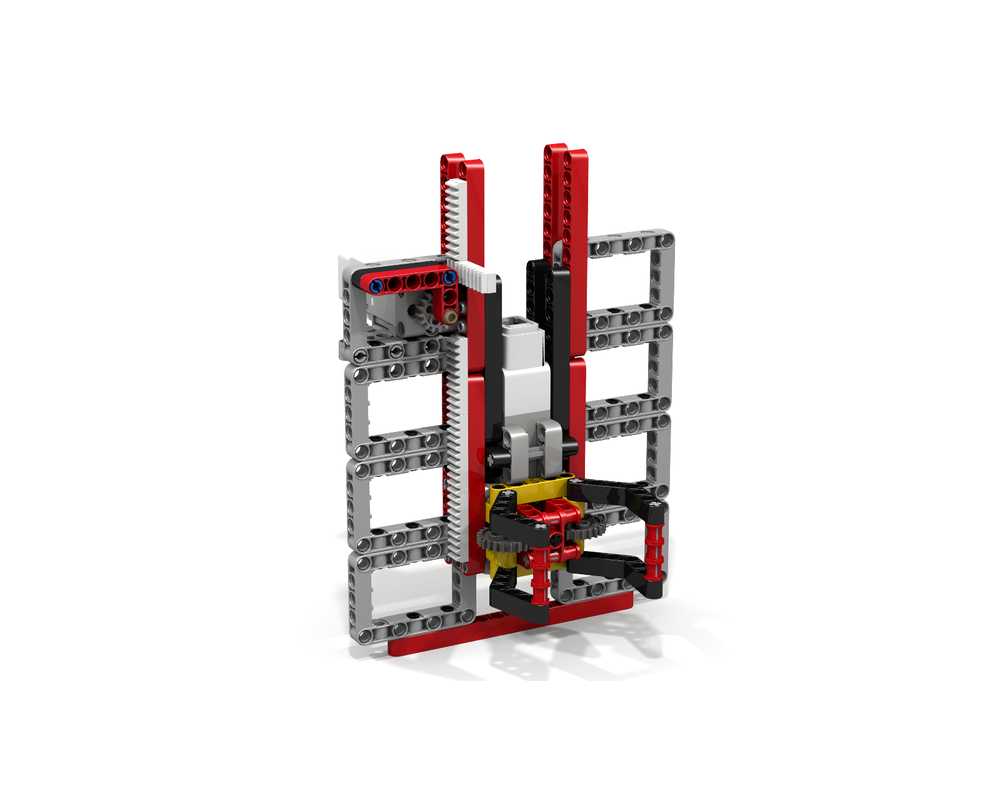

This Lego EV3 motorized grabber was designed by the 0nly4Girlz team.  It uses two EV3 Medium Motors (one for the grabber, and one to lift the sliding carriage up between two frames).  The central carriage is inserted in between the frames from the top; the frames are attached to the front of the EV3 robot.  (Note that the 1x4 Rack shown in the render had to be rotated 90 degrees away from the gear, because of an LDD "collision error" -- it fits fine in real life.)
Login to hide ads!

MOC-12887

Name EV3 Grabber by 0nly4Girlz
Designer DLuders
Designed 2018
Inventory 156
Theme Mindstorms > EV3
Already have some of the parts? Use the Build this MOC page to only show the parts you are missing.
Create an account to change the default filters used.

Waiting for Inventory to load

Use LEGO Digital Designer to open these files and generate step by step building instructions.
