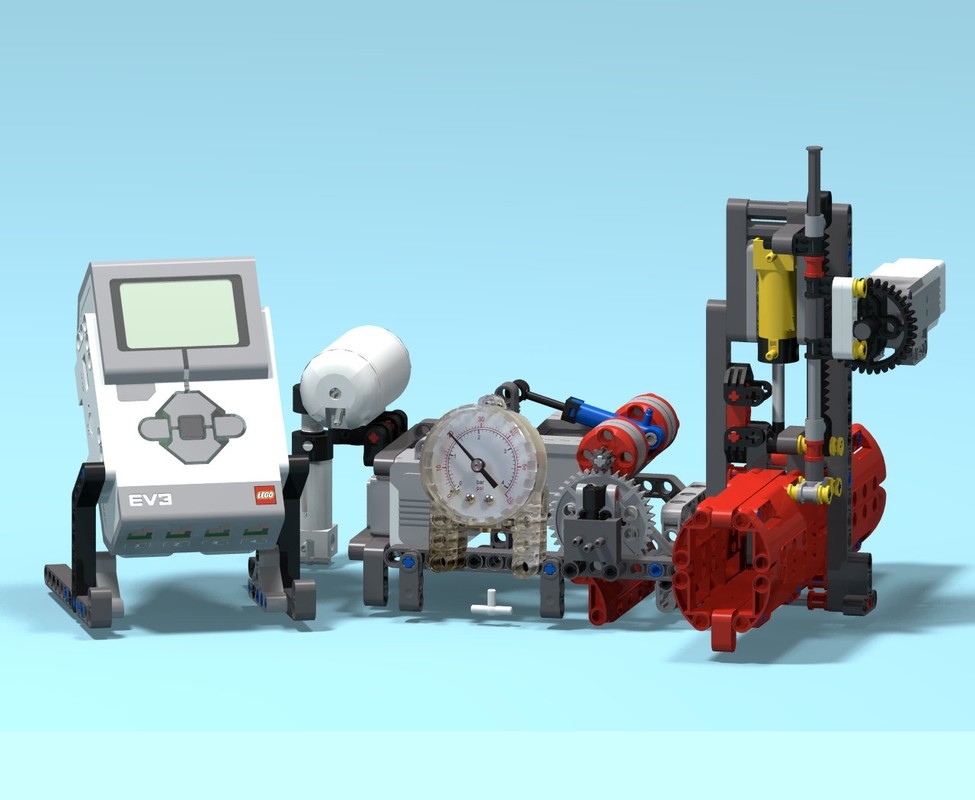

EV3 Intelligent Valve Positioner

FOLLOWERS

137

LIKES

Model of digital positioner for power drives (for example TZIDC from ABB).
For normal operation of the Lego valve, before starting work, it is necessary to adjust the opening value for minimum air flow. The program provides for 5 positions of opening of the pneumatic cylinder: 0, 25, 50, 75, 100%. Use buttons up and down to set the desired position of the pneumatic cylinder. Pressing the central button activates the program that controls the valve to open or close the pneumatic cylinder. If the pneumatic cylinder is stopped at the position not corresponding to the task, you can repeat the control operation by pressing the central button again. The position is tracked by a small motor from a set of minstorms. 2 large minstorms motors are used to pump air and control the Lego valve.


The following LEGO set's were used: 45544, 9641, 42054.


Main details:
1. EV3 block from the Minstorms Lego set;
2. 2 large motor from the Minstorms Lego set;
3. small motor from the Minstorms Lego set;
4. small pump from the Pneumatic 9641 Lego set;
5. large (manual) pump from the Pneumatic 9641 Lego set;
6. a large pneumatic cylinder from the Pneumatic 9641 Lego set;
7. valve from the Pneumatic 9641 Lego set;
8. manometer from the Pneumatic 9641 Lego set;
9. tubes from the Pneumatic 9641 Lego set;
10. the remaining parts of the Claas Xerion 5000 (42054) Lego set.


In my video, fragments from the following videos were used:
https://www.youtube.com/watch?v=eF-7sYHsJqc
https://www.youtube.com/watch?v=e02EIPA6dbc
https://www.youtube.com/watch?v=RRbrgX9kJQk
Login to hide ads!

MOC-21981

Name EV3 Intelligent Valve Positioner
Designer Artem 16
Designed 2019
Inventory 293
Theme Mindstorms > EV3
