sequential gearbox 6 speeds + R + N

FOLLOWERS

20

LIKES

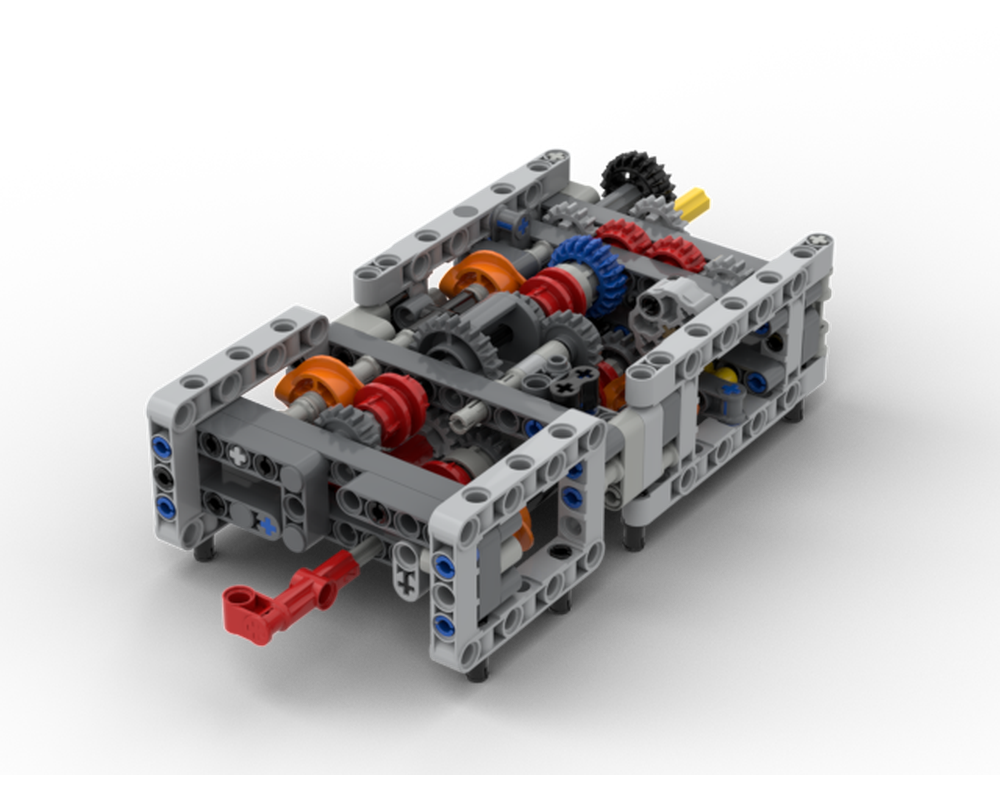

This is a sequential gearbox with 6 speeds, neutral and reverse speed.
It use rotary catch's and the blue 20 tooths which appeared in the #42083 Chiron.
the differents ratios are :
• speed reverse, ratio -1:1,5 ;
• speed neutral, ratio 0 ;
• speed 1, ratio 1:1,25 ;
• speed 2, ratio 1:1 ;
• speed 3, ratio 1:0,75 ;
• speed 4, ratio 1:0,6 ;
• speed 5, ratio 1:0,417 ;
• speed 6, ratio 1:0,333 .

More details are available on Techlug (french forum).

[2019/01/22] :  instructions update to fix a bug which blocks speeds (and broke few 8T gears ...). The first change appears in step 24 with a voluntary "white false color " technic Axle 3.
Login to hide ads!

MOC-28854

Name sequential gearbox 6 speeds + R + N
Designer TechToth
Designed 2019
Inventory 200 parts
Theme Technic
Old Trafford
