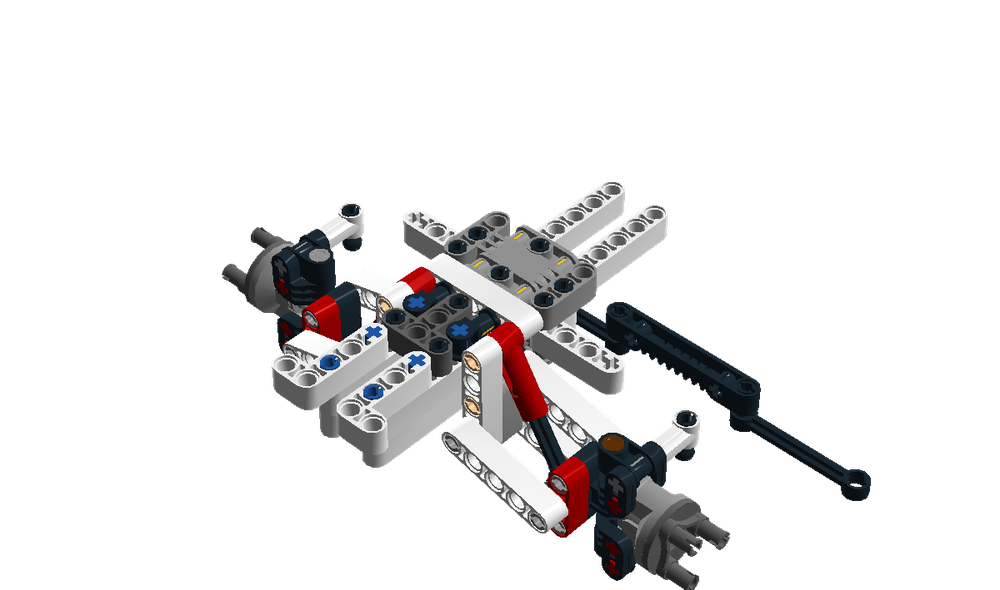

This front suspension will work on any wheel with the hub pattern in 42009. Those are the wheels I designed this around. The 7m gear rack goes upside down on the 12-tooth gear. LDD just didn't like the way i tried to turn the ball-and-socket beams. The 2x4 angle beams in the center hold the gear rack in contact with the gear, but they can also be points to connect the frame to.
Login to hide ads!

MOC-28956

Name Front suspension
Designer SNOTTYBOY
Designed 2019
Inventory 105
Theme Technic > Model > Race
Central Perk
Already have some of the parts? Use the Build this MOC page to only show the parts you are missing.
Create an account to change the default filters used.

Waiting for Inventory to load

Front_suspension_MY_DESIGN.lxf
Sept. 3, 2019, 3:59 p.m.
14.3 KB

Use LEGO Digital Designer to open these files and generate step by step building instructions.
