MP5 Submachine Gun




Hi guys,
happy to present the first truly working LEGO submachine guns

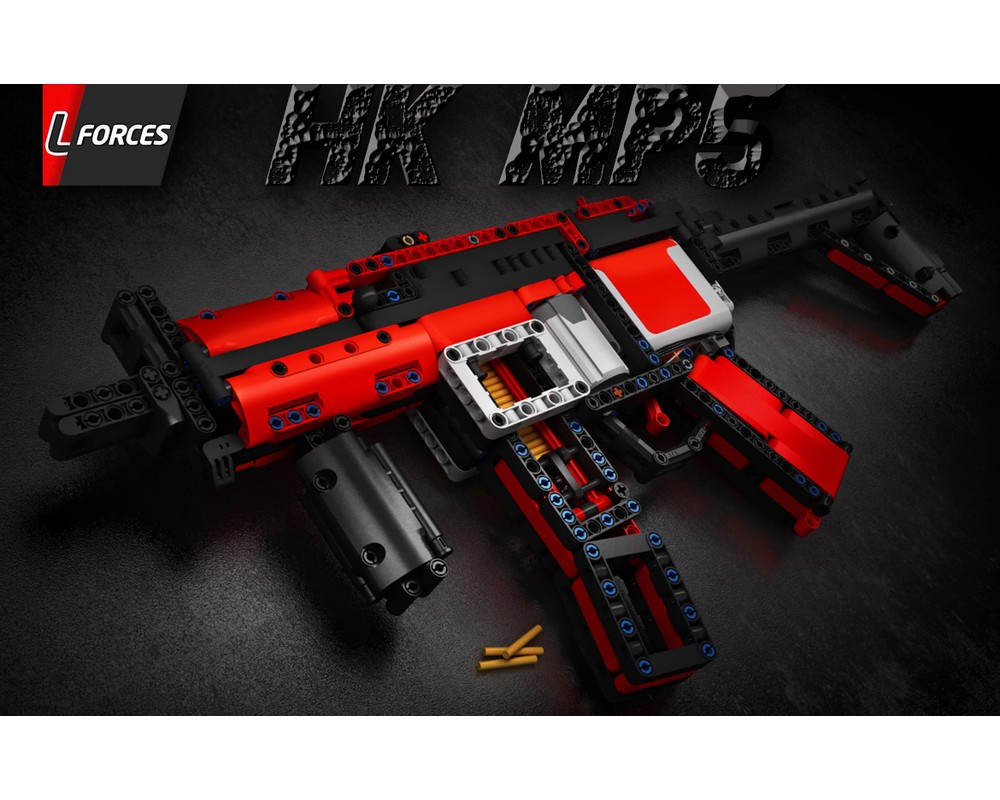

The Heckler&Koch MP5 K-PDW with front handle and folding stock
It’s almost real size, maybe only the stock is a little bit shorter.
The weight is well balanced. The heaviest part - the battery box is right above the handle.
The foldable stock locks in both positions.
To achieve the longest firing range for bullets one of the lightest LEGO Technic pieces, a 3 stud long bar powered by the strongest shock absorber, is used.
Effective range is about 4 meters, which is around 14 feet.
28 rounds fit in the magazine.

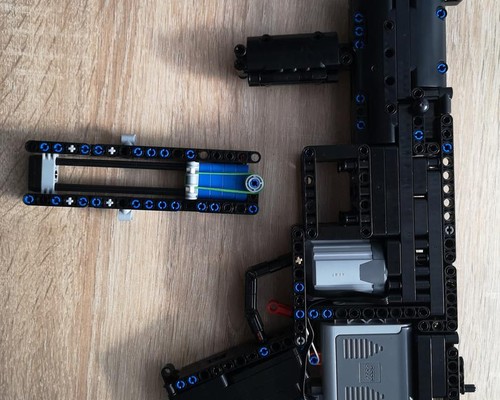

XL motor is used for the best rate of fire. The gun can produce as many as 420 shots per minute.
Compared to the original 800, it’s really not bad for a LEGO version.
It takes only 4 seconds to empty the magazine.

Two custom parts - one is to lift the bullets - a thin easily stretchable rubber band, another one is to hit them - it’s an axle with a thinned end.

Thanks for watching
