Sandvik TH.680 Manual version

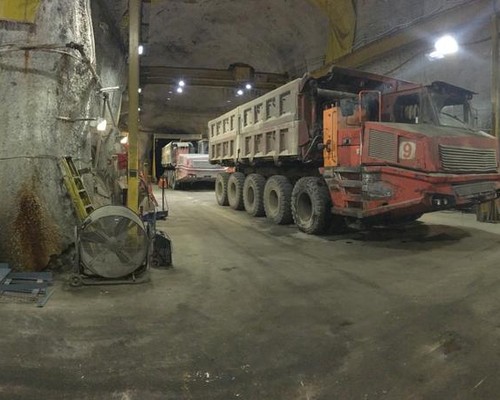

The TH 680 “Supra” (originally built by Toro) was at its release the largest underground truck built by Sandvik. It is an 10x4 truck with a maximum payload of 80t with a side dump haul. The unusual design present a lot of advantages: the large number of wheels (20) and the compact conception allow to have a very (very) high payload for a reduced size, and thanks to the 4 steering axle, the truck is able to take very sharp turn and can so operate in the same underground gallery than other Sandvik equipment.

The present MOC of the TH.680 is a manual version which takes all the main functions of the real truck.
It is a manual version of my Power Function one.

It has:
- 4 rotating axles controlled buy a hand-of-god gear at the rear end of the truck
- A lateral tilting tipper operated by Linear Actuator, with lateral door operated by a single Mini Linear Actuator
- A singing hood and an engine cover that reveal the 6 cylinder fake engine
The MOC is 1532 parts, 57x20x18 cm and 1885g.
Digital images and instructions are generated through Bricklink Studio software.
