COYOTE 4x4x4

FOLLOWERS

139

LIKES

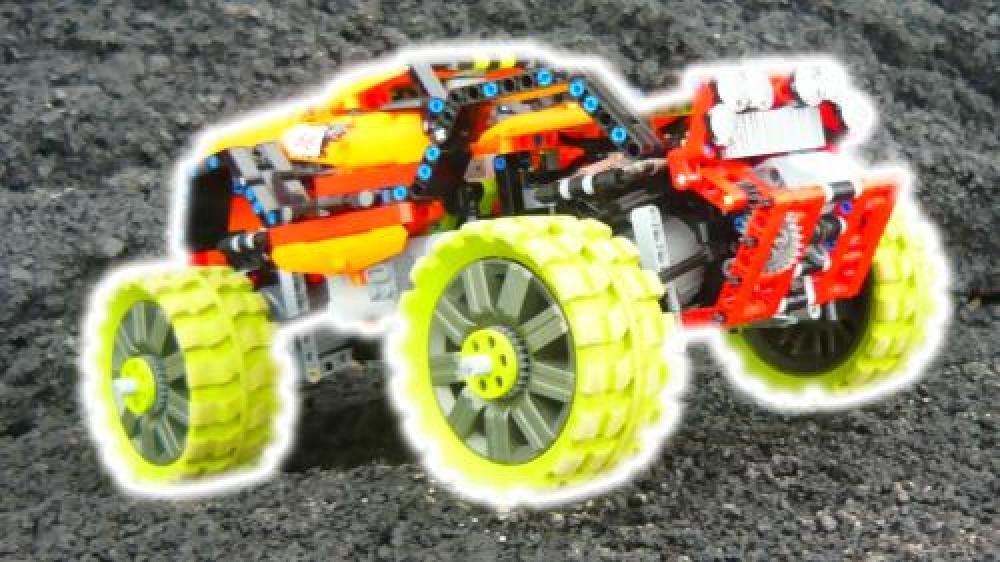

After the famous Fox 8x8x8 I wanted to design a more compact, yet equally if more capable model.

The basic idea stayed the same:

- Use of outdoor challenger wheels
- One XL motor per wheel
- Portal gearing for maximum ground clearance
- Independent left/right all wheel drive
- All wheel steering
- Independent suspension for maximum stability
- Motorized winch

But I also managed to innovate and squeezed in the next features:

- High travel double wishbone suspension with horizontal springs for maximum compactness
- Double linkage steering with servo motors for best possible stiffness and robustness
- Robust, yet flexible chassis for best offroad performance
- Easy battery replacement
- Openable doors

I also put some effort in the shaping to make it look futuristic with a lot of curved and slanted parts which give it a very distinctive shape. Of course the bodywork is designed to survive the stresses involved in rollovers and rough handling.

Due to LDD's limitations the LDD file does not contain:
4 x Outdoor challenger's wheels
2 x PF Servo motor
1 x PF Switch
1 x string
