EV3 Chebyshev’s plantigrade machine

FOLLOWERS

157

LIKES

Chebyshev is considered to be a founding father of Russian mathematics. Among his well-known students were the mathematicians Dmitry GraveAleksandr KorkinAleksandr Lyapunov, and Andrei Markov

About Chebyshev’s plantigrade machine:  The Chebyshev's Lambda Mechanism[1] is a four-bar mechanism that converts rotational motion to approximate straight-line motion with approximate constant velocity.[2] The precise design trades off straightness, lack of acceleration, and what proportion of the driving rotation is spent in the linear portion of the full curve.[3]
The example to the right spends over half of the cycle in the near straight portion.
The Chebyshev's Lambda Mechanism is a cognate linkage of the Chebyshev linkage.
The linkage was first shown in Paris on the Exposition Universelle (1878) as "The Plantigrade Machine".[4][5]
The Chebyshev's Lambda Mechanism looks like the Greek letter lambda, therefore the linkage is also known as Lambda Mechanism.[6]

This model by Nguyen Duc Thang design: https://www.youtube.com/watch?v=s76NNfQN9bI
Login to hide ads!

MOC-8670

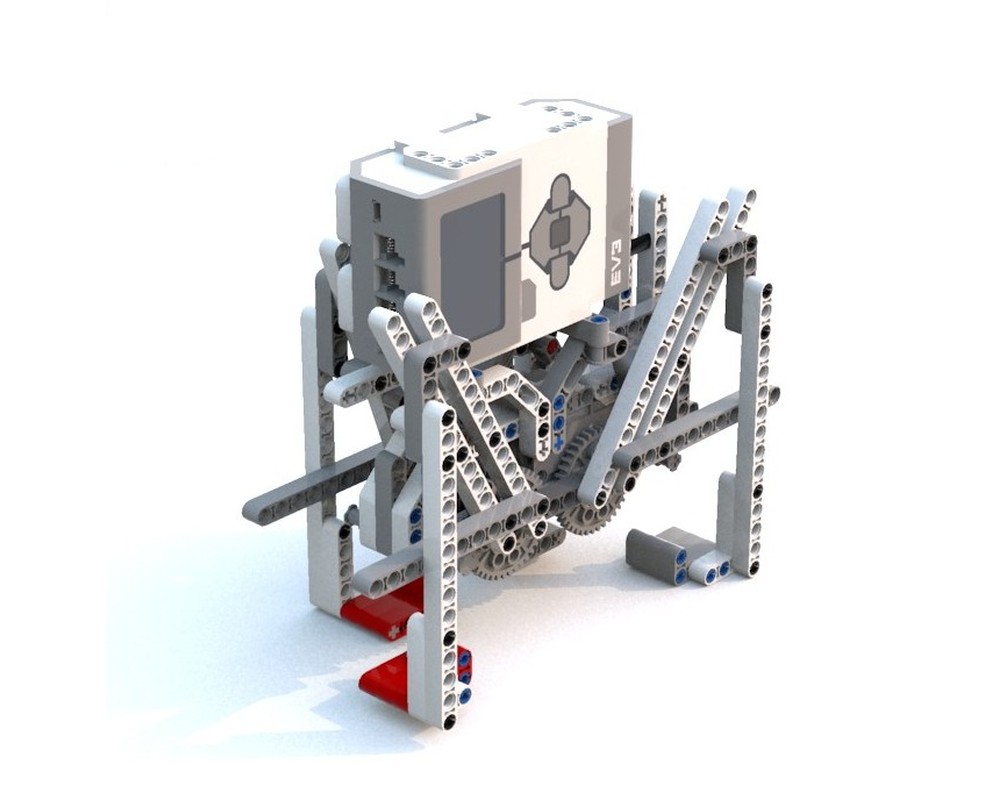

Name EV3 Chebyshev’s plantigrade machine
Designer Artem 16
Designed 2017
Inventory 212 parts
Theme Mindstorms > EV3
Old Trafford
Already have some of the parts? Use the Build this MOC page to only show the parts you are missing.
Create an account to change the default filters used.

Waiting for Inventory to load

Use LEGO Digital Designer to open these files and generate step by step building instructions.
